Interaction Design in Wallet Passes

Daniel Baudino

Updated June 29, 2025

Overview

In wallet passes, interaction design is not about what users do. It's about what the system does for them.

You cannot add buttons. You cannot create flows. You cannot design taps and swipes.

What you can design: the moment the pass appears, what it shows, and what happens after validation. That's it. That's the entire interaction surface.

The interaction you don't control

Designers trained on apps expect to design interaction. In wallet passes, most interaction is designed by Apple and Google.

The lock screen appearance? System decision. The notification timing? System decision. The validation flow? System decision.

Your job is not to design interaction. Your job is to design for the moments the system creates.

Why is interaction in wallet passes intentionally minimal

Wallet passes are not designed for exploration. They are designed for decisive actions: scan, tap, show, confirm.

Every allowed interaction exists to support speed, clarity, and confidence. Anything that slows that down is intentionally excluded.

Why is the primary interaction often not a tap

In many wallet pass experiences, the main interaction is passive. The pass is surfaced automatically, the correct code or credential is already visible, and the user does nothing except present the phone.

This is a radical departure from app interaction models. The best interaction is often the one that doesn't require a decision.

What are the core interaction types you can design for

Wallet passes support a small but powerful set of interaction patterns.

How does the presentation interaction work

The most common interaction is simply showing the pass — a barcode, a QR code, or an NFC credential. The user's role is minimal. The system handles the rest.

Make it unmistakably clear what is being presented and why. When a QR code or credential is the primary interaction, it should be treated as a first-class system element — not embedded inside decorative imagery.

How does tap to reveal work for secondary information

Wallet passes support a clear separation between what must be visible immediately and what can be accessed intentionally. This is often implemented through the back of the pass.

On the back of a pass, you can typically include supporting text, terms or instructions, and a URL for help, policies, or next steps. This information is not meant for the critical moment — it's there when the user chooses to look deeper.

If information is required for validation or access, it does not belong on the back.

How do app links and external actions work

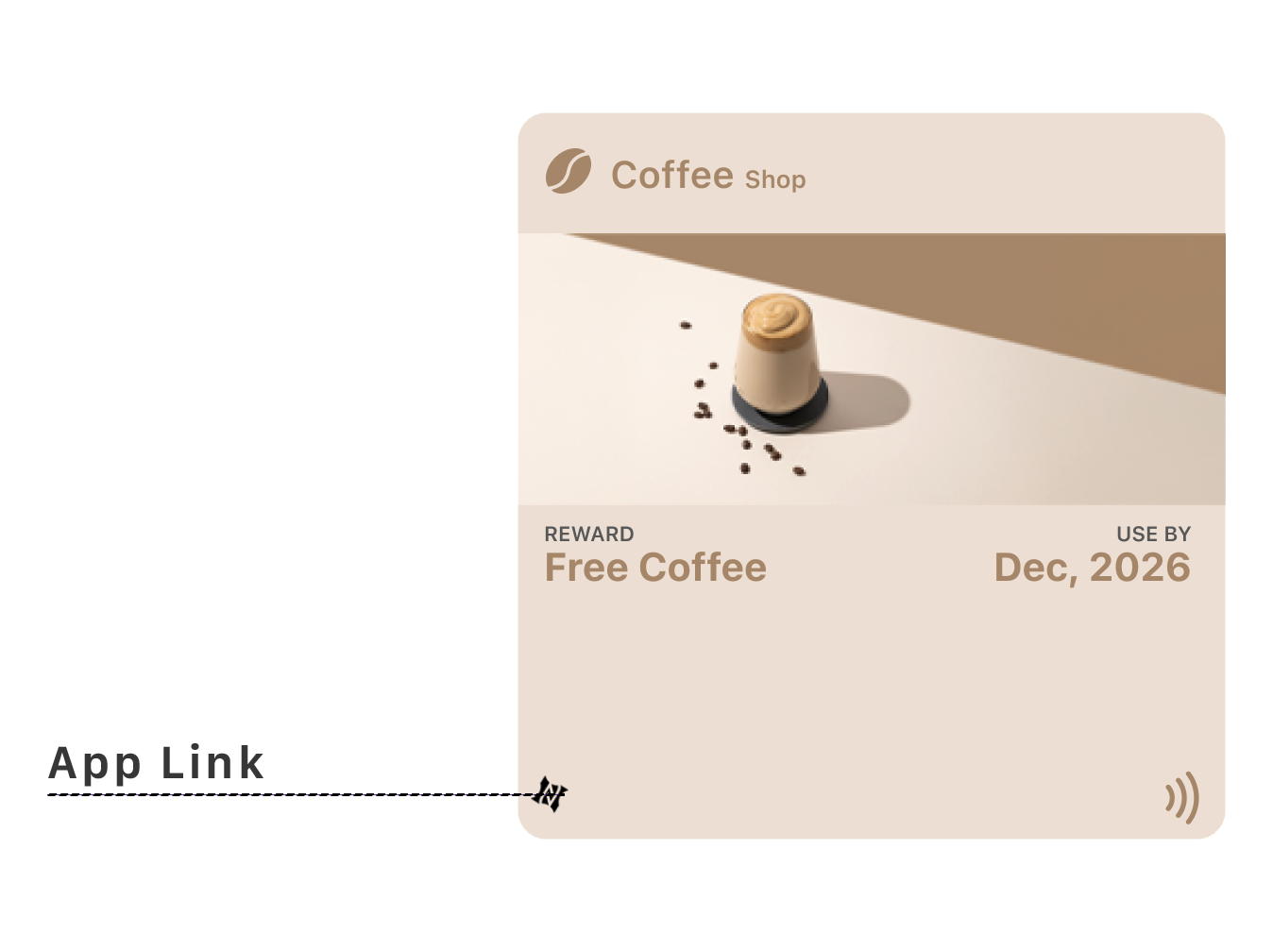

Wallet passes can include a dedicated app link interaction. This link is commonly used to open a branded app, deep-link into a specific screen, or resume a journey outside the wallet.

Importantly, this interaction is flexible. If an app is installed, it can open directly. If not, it can fall back to a web experience. This makes the pass a bridge, not a destination.

App links should support continuity, not replace the pass's core function.

What expanded interactions do poster passes support

Some pass types support richer interaction patterns. Poster-style event passes unlock an additional layer of interaction: an expanded, guided experience with structured secondary views and event-related context.

This is often referred to as an event guide experience. These interactions are still constrained, but they allow more depth, more storytelling, and more contextual navigation.

Even with expanded interaction, the primary moment — entry, validation, access — must remain frictionless.

How do system-driven interactions work

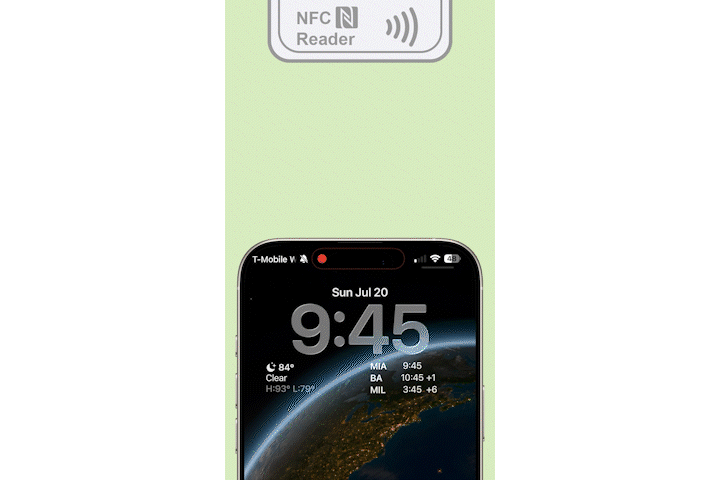

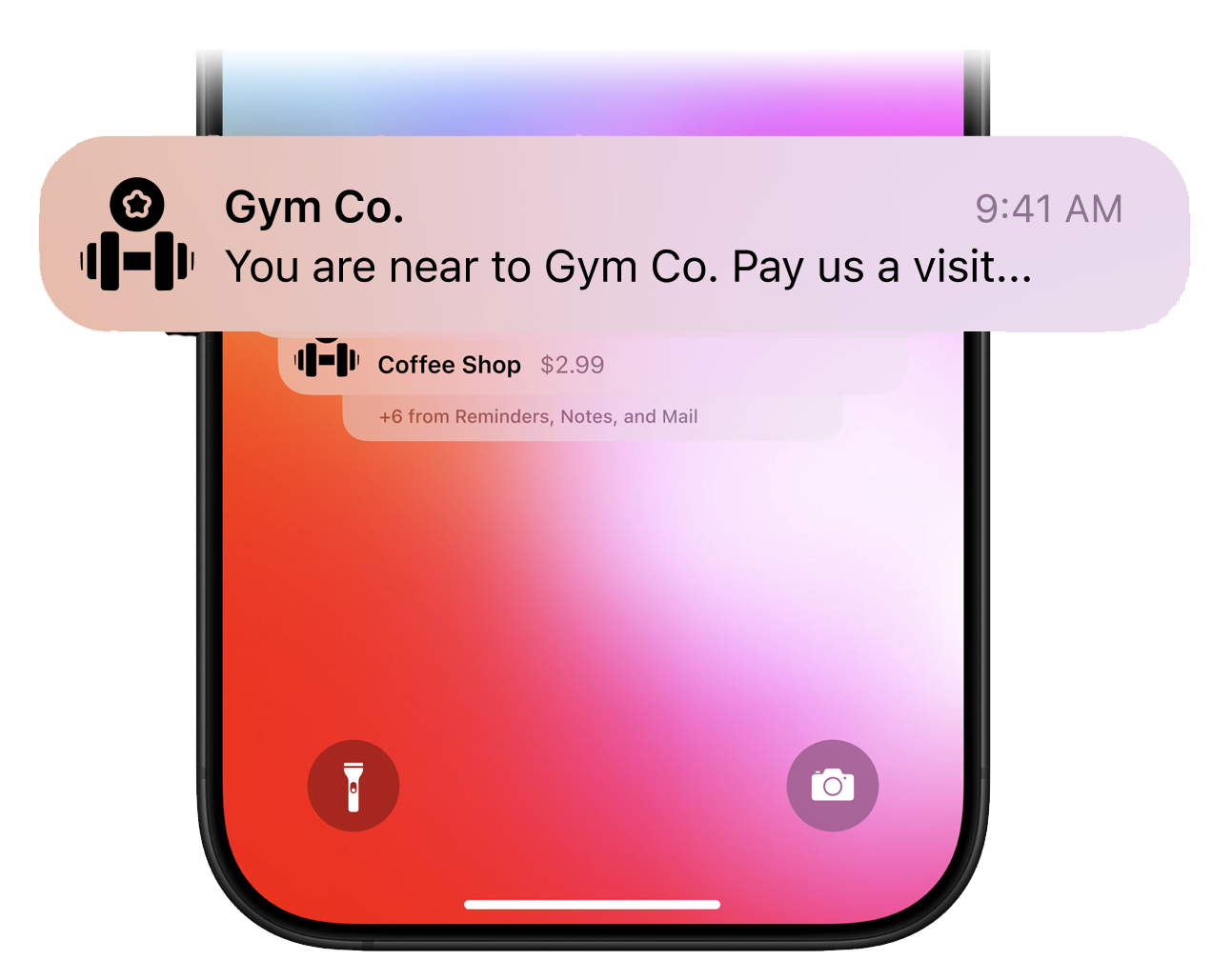

Some interactions are initiated by the system, not the user. Automatic surfacing, lock screen suggestions, and notifications triggered by updates all fall into this category.

The user did not ask for these interactions, but they benefit from them. Design content so these moments make sense instantly, without explanation.

What interactions should you avoid designing

Wallet passes intentionally avoid multi-step flows, custom gestures, user configuration, form input, and navigation trees.

If your experience depends on these, a wallet pass is the wrong surface. Wallet passes are endpoints, not processes.

Why is interaction shaped by trust

Wallet passes work because users trust them. They trust the system UI, the predictable behavior, and the automatic updates.

Every interaction should reinforce that trust. Too many actions, links, or choices undermine confidence.

How do you design for no interaction

One of the hardest shifts for designers is accepting that users may never tap, never explore, and never "engage" — and that's success.

If the pass appears at the right time, shows the right information, and requires no explanation, then the interaction design has worked.

How do passes interact through state changes

Wallet passes interact with users primarily through state changes: active to expired, locked to unlocked, pending to confirmed, upcoming to live.

The user doesn't trigger these changes — they observe them. Make state changes obvious and meaningful.

What is a useful design test for interactions

If you're unsure whether an interaction belongs in a wallet pass, ask: Would this still work if the user never tapped anything?

If the answer is no, the interaction probably doesn't belong there.

The Shift

Stop designing interactions. Start designing for moments the system creates.

The pass appears. The credential is ready. The user shows. The system validates. Done.

If your pass requires explanation, navigation, or decision — the interaction design has failed. Success looks like nothing happening at all.
